Iveco Genlyon Trailer Truck Hot in Congo

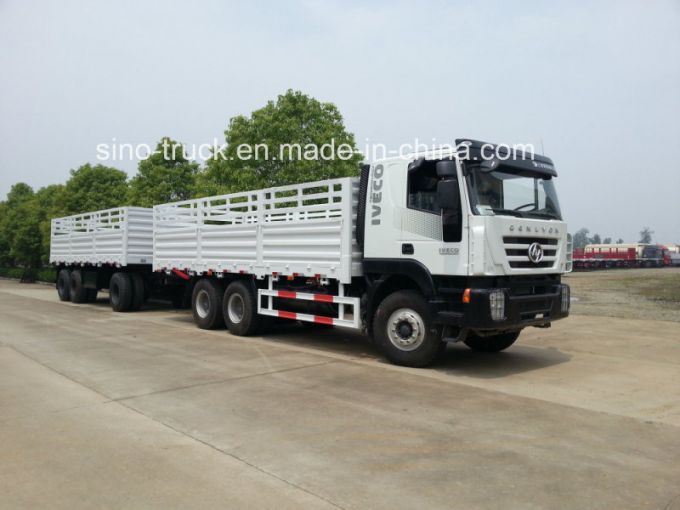

Saic-Iveco Hongyan Genlyon truck with trailer;

1. Italian advanced design and manufacture techniques;

3. Excellent quality, competitive price, with mature spare parts system.

If you are interested in this model, pls send your inquiry, and we will always be glad to quote.

NO.	SPECIFICATION	PARAMETER	NOTE
1	Chassis	CQ1254HTG434
2	Drive	6×4
3	Rated Weight	13,730
4	Kerb Weight(kg)	11,140
5	Gross Vehicle Weight(kg)	25,000
6	Type	Genlyon cab,Flat-roof strengthed, Left-Hand drive
7	Equipment	Air-conditioner, One Sleeper,Large carbin
8	Overall Dimension(mm)	9,640x2,500x3,201
9	Body inner size(mm)	7,060x2,500x900
10	Wheelbase(mm)	4325+1350
11	Engine	Cursor 9380
12	Engine Output(kw(HP))	(280)380HP
13	Displacement(L)	8.709
14	Emission STD	EURO3
15	Gearbox	12JS160T
16	Drive Axle	Double Reduction, Hongyan punching welding drive axle
17	frame(mm)	865/280 8+5, strengthened
18	Tyre	12.00R20
19	Fuel tank capacity	400L
3 axles full trailer specs
1	Dimensions	Inner dimension:7000*2650*1000 mm
2	Axle	13 Ton x3, FUWA axle
3	Tire	12.00R20, 12 pcs or 6pcs
4	Rim	8.5-20*12
5	Leaf spring	10 pieces
6	twist lock	Load 1*20' standard container
7	main beam	height: 500mm, top/bottom flange thickness: 12/14mm, web plate thickness:6mm
8	floor	3mm, checkered plate	thickness customized
9	Side beam	18#channel steel
10	Cross beam	10#channel steel
11	Tool box	1x1.2m
with one spare wheel carrier, twist locks
